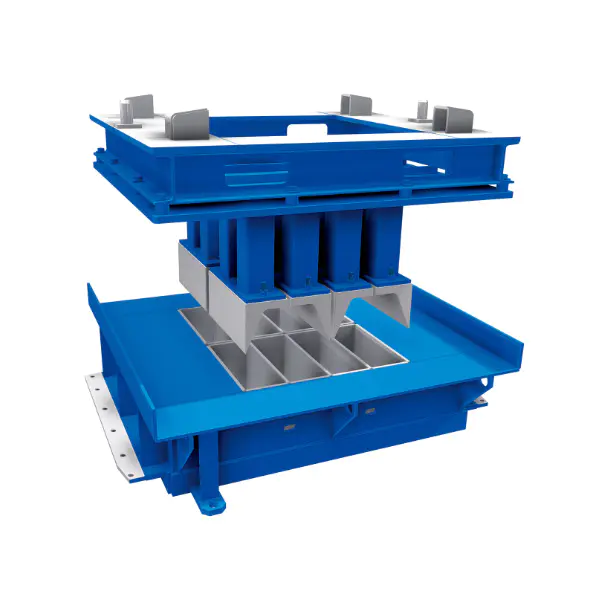

Our interlocking mould systems are precision-engineered to produce consistent, high-strength concrete blocks for a wide range of structural and landscaping applications. These moulds are designed to create blocks that lock together without mortar, speeding up construction and reducing labor costs. Whether you are forming retaining walls, paving driveways, or building entire housing units, our concrete wall moulds deliver sharp edges and uniform dimensions every cycle. For projects requiring customized shapes, our concrete block mold options cover a broad catalog of hollow and solid designs. We maintain a ready stock of concrete block moulds for sale to support urgent order fulfillment and flexible production planning. In addition, our cement block moulds are fabricated with high-grade steel and reinforced corners to withstand high-frequency vibration and compaction pressures, ensuring thousands of cycles without deformation.
Interlocking Mould construction relies on exacting tolerances, and our moulds achieve dimensional accuracy within ±0.5 mm across all bearing faces. Each Interlocking Mould unit is assembled from wear-resistant Q345 steel plates treated with anti-corrosion coatings, making them suitable for both wet-cast and semi-dry production methods. The mould cores and side plates are precision machined and interchangeable, which simplifies maintenance and reduces downtime. A range of standard and bespoke configurations is available to produce blocks with compressive strengths from 7 MPa up to 40 MPa, matching regional building codes. The table and list below outline the technical specifications and key features that set our Interlocking Mould apart in demanding production environments.
| Parameter | Specification |
|---|---|
| Block type | Hollow interlocking, solid, paver, and curbstone profiles |
| Mould weight | 85–320 kg depending on cavity count and block height |
| Steel plate thickness | Side plates 12 mm, wear plates 16 mm, core 10 mm |
| Cycle life | Minimum 800,000 cycles on abrasive mixes |
| Heating option | Integrated oil or electric heating channels for cold climates |
| Pallet size compatibility | 1100x550 mm to 1400x700 mm |
| Compaction force rating | Up to 180 kN static load |
| Quality certification | ISO 9001, CE conformity, and SGS material traceability |
