For construction professionals and landscape designers, the foundation of a durable and visually appealing outdoor space starts with the right forming equipment. Our brick mould range delivers precision for standard clay and concrete masonry units, while the advanced brick mold variants ensure consistent compaction and sharp edge definition cycle after cycle. When projects demand larger format elements, the robust block mould lineup handles interlocking and solid blocks with equal reliability, and the versatile block mold configurations accommodate custom dimensional requirements with minimal adjustment time. These engineered solutions share a common DNA with our paver block mould offerings: heat-treated alloy construction, precision-machined contact surfaces, and interchangeable wear parts that collectively reduce per-unit forming costs while maximizing product output across residential driveways, municipal plazas, and commercial hardscape installations.

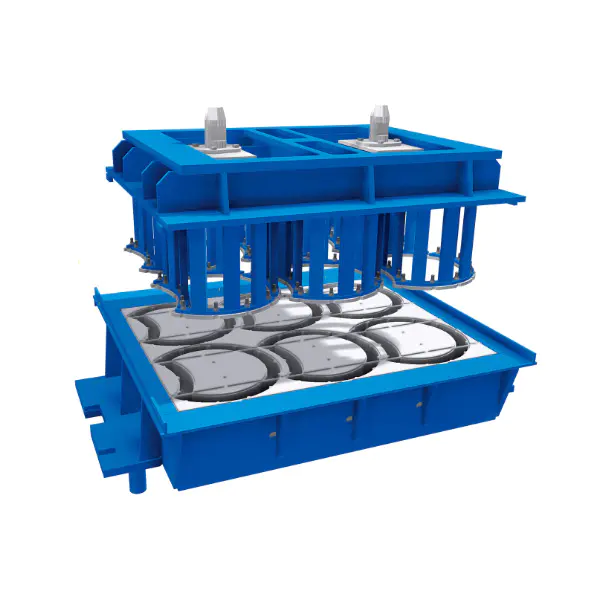

Paver block mould systems are engineered for high-frequency production environments where dimensional accuracy and surface finish directly influence the final aesthetic of patios, walkways, and parking bays. Each paver block mould shell is formed from quenched and tempered boron-alloy steel plate, hardened to 58-62 HRC on all working faces to withstand abrasive mixes containing granite chips, silica sand, and iron oxide pigments. The cavity layout is optimized through finite element analysis to ensure uniform pressure distribution during vibro-compression, resulting in consistent block density and sharply defined chamfer profiles. Wet-cast and semi-dry production methods are both supported, with dedicated vibration node mounting points and quick-change bolster frame interfaces that reduce mold changeover to under fifteen minutes for mixed-shape production runs. Below, find the technical parameters, material specifications, and configuration options that define our paver block mould portfolio.
| Parameter | Specification |
|---|---|
| Steel Thickness (Side Walls) | 8 mm, 10 mm, 12 mm (customizable based on block height) |
| Hardness (Working Face) | 58 – 62 HRC |
| Standard Cavity Counts | 4, 6, 9, 12, or 18 per mold (depending on paver size) |
| Block Thickness Range | 40 mm to 120 mm |
| Shape Options | Rectangular, square, I-shape, hexagon, zigzag, and permeable paver configurations |
| Surface Pattern | Smooth, shot-blasted, cobblestone texture, slate finish, or custom logo/design engraving |
| Expected Service Life | 250,000 – 350,000 cycles with standard concrete; 150,000+ cycles with pigment-heavy mixes |
| Customization | Non-standard sizes, multi-thickness spacers, drainage nibs for permeable pavers, and interlocking spacer profiles |
| Weight Range | 55 kg to 480 kg (depending on mold size and cavity count) |
| Lead Time | 15 – 25 working days for standard models; 30 – 40 days for custom designs |
Beyond the base specifications, our paver block mould units incorporate subtle engineering details that improve daily operation: stepped parting lines that prevent concrete flash buildup, captive bolt assemblies that eliminate loose fasteners during vibration, and alignment dowels that self-center the mold on the machine table during rapid changes. Every mold is accompanied by a detailed setup sheet indicating ideal feedbox height, vibration frequency range, and compacting head stroke for the specific mix design, accelerating the commissioning process on site. Spacer kits are available to run multiple block thicknesses from a single mold frame without mechanical modification, a feature particularly valued by producers serving both commercial and high-end residential markets concurrently. The result is a forming solution that maintains tight dimensional control across thousands of cycles, enabling consistent joint spacing, clean radius corners, and repeatable color distribution in every paver leaving the production line.
